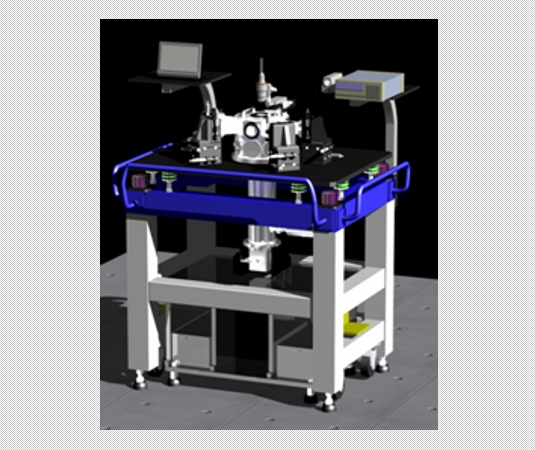

GRAIL 10-205-X-LV
Any temperature measurement(300K ～below 10K)
Specification(Mechanical Cryogenic prober station)
| Item | GRAIL 10-205-X-LV |
| Equipment configuration | Cryogenic prober main unit X 1set Helium compressor unit x 1set |
| Prove body outline dimensions | 960(W)×720(D)×1300(H) (Not include a protection bumper) |
| Weight | Prober main unit:500kg around Helium compressor unit:70kg |
| Cooling method | Mechanical 2steps 4K Refrigerator Model Number:SRDK205 |
| Measured temperature range | < 10K～300K |
| Area can be measured | < 20mm X 20mm |
| Cooling time until the minimum temperature | < 180 minutes(until 15K) |
| Temperature Stability *1 | 10K～RT：±0.2K |
| Measurement noise | < ±50fA |
| Quantity of vibration sample stage | Our environmental measurements ±2μｍ |
| Probe head | 0~6 pieces *2 |
| Probe mobility | X-axis:±25.0mm Y/Z-axis:±12.5mm |
| Signal connector | TRIAX connectorX(quantity probe+1) *3 |
| Sample Stage mobility | No transferring machanism |
| Options that can be mounted etc... *4 | Magnet kit / High temperature kit / TRIAX holder kit |
*1)If the temperature sensor is used Si
*2)I represents the number of portions of the "X"
*3)+1 is for the back gate
*4)There is a casa where the basic specifications are subject to change
